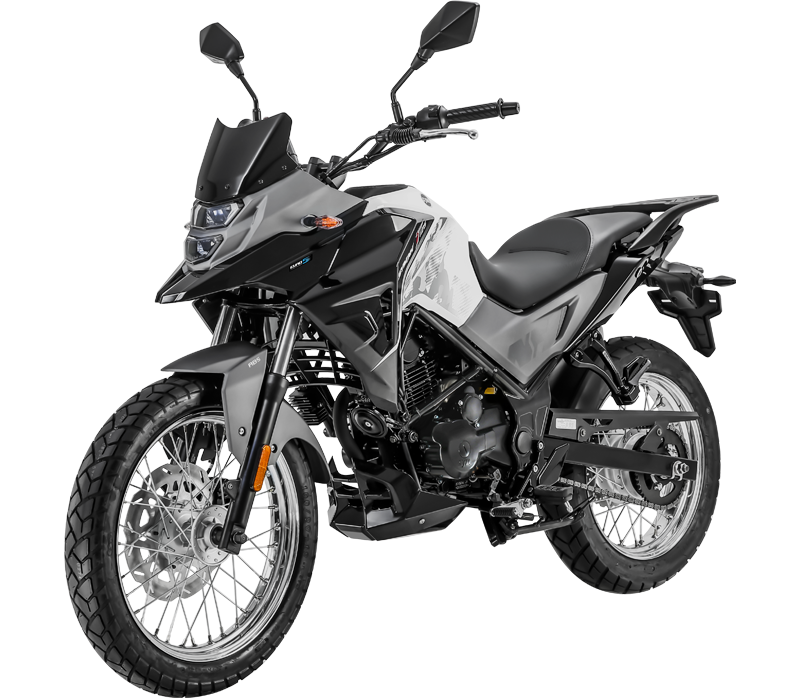

SYM NHT125 Black

SYM NHT is a range of adventure crossovers designed for urban exploration. These bikes feature a slightly upright riding position, which enhances forward visibility. Additionally, the perimeter frame, centered-suspension, and front and rear brake disc with CBS provide excellent handling. The SYM NHT also boasts modern features such as full-LED lighting, a 2A USB charger, and an LCD meter. Its beak and visor add to the adventure aesthetic. The front 140mm travel suspension allows riders to navigate various terrains with ease, while wire-spoke wheels absorb shocks to provide a more comfortable ride. The bike's dimensions are 2068 x 860 x 1195 mm, with a wheelbase of 1405 mm and a curb weight of 150 kg. The front suspension is a telescopic fork, while the rear suspension is a mono shock.

Engine Specification

ENGINE TYPE
4-Stroke, single cylinder

DISPLACEMENT
124.1cc

BORE X STROKE
56.5mm x 49.5mm

COMPRESSION RATION
10.1:1

RATED OUTPUT
8 kW / 9000 rpm

MAX. TORQUE
9.5 Nm / 7,500 rpm

LUBRICATION
Forced circulation & splashing

FUEL SUPPL
Electronic Fuel Injection

EXHAUST SYSTEM
Euro 5 Compliant

CERTIFICATION
Euro 5

CLUTCH
Wet multi-plate

GEARBOX
5 Speed

FINAL DRIVE
Chain

IGNITION
TCI

COOLING SYSTEM
Air Cooled

BATTERY
12V

SPARK PLUG
N/A

STARTING
Electric

Chassis Specification

FRAME
Steel Perimeter Frame

FRONT SUSPENSION
Telescopic Fork

FRONT SUSPENSION STROKE
140mm

FRONT BRAKE
Disc 288mm

REAR SUSPENSION
Single Swing

REAR SUSPENSION STROKE
42.5

REAR BRAKE
Disc 222mm

FRONT RIM TYPE
Spoked

REAR RIM TYPE
Spoked

REAR RIM DIMENSION
17 in

FRONT TYRE
100/90-19

REAR TYRE
130/80-17

HEADLIGHT LAMP
LEd

TAILLIGHT LAMP
LED

Dimensions

LENGTH
2068mm

WIDTH
860mm

HEIGHT
1195mm

GROUND CLEARANCE
180mm

UNLADEN WEIGHT
150kg

USABABLE TANK VOLUME
11 Ltr

RESERVE
N/A

WHEELBASE
1405mm

SEAT HEIGHT
812mm
